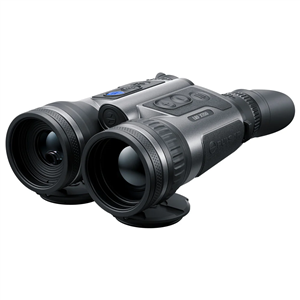

Merger LRF XT50 Thermal Binocular
Main
Sensor 1280/1024 @ 12 µm (NETD <40 mK)
Objective lens 50mm/F1.0
Magnification, x 2-16
Field of view (HxV), degrees / m@100m 17.5/30.7
Detection range, yards 2515
Sensor
Type uncooled
Resolution, pixels 1280/1024
Pixel pitch, µm 12
NETD, mK <40
Frame rate, Hz 50
Optics
Objective lens 50mm/F1.0
Magnification, x 2
16
Field of view (HxV), degrees / m @ 100 m 17.5/30.7
Interpupillary distance adjustment, mm 63-74
Eye relief, mm 15
Range Performance
Detection range, yards 2515
Laser
Rangefinder
Safety class for laser equipment according to IEC 60825-1:2014 1
Wavelength, nm 905
Max. measuring range, yards 1640
Measurement accuracy, m ± 1
Video Recorder
Video / photo resolution, pixel 1280/960
Video / photo format .mp4 / .jpg
Built-in memory, GB 64
Wi-Fi
Wireless Protocol Wi-Fi
Wireless Standard IEEE 802.11 b/g/n/ac (WPA)
Frequency, GHz 2.4 / 5
Environmental Characteristics
Degree of protection, IP code (IEC60529) IP?7 (waterproof)
Operating temperature range, °F -13-122
Connections and Compatibilities
Mount, type 1/4" socket
Supported Application Stream Vision 2
Power Supply
Output voltage, V 3.7
Battery type Dual Li-Ion internal + Pulsar APS3 external
|
