Sensor Type BAE MicroIR VOx Uncooled Microbolometer

Sensor Resolution

640x480 (actual 640x480) 307,200 pixels

SpectralL Band 8 - 12 μm

Pixel Pitch 12 μm

Sensitivity <50 mK

Frame Rate

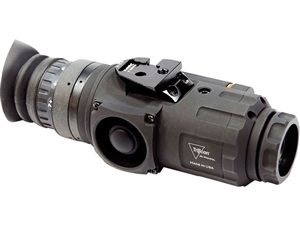

30HZ - IR PATROL LE100

Calibration NUC (Non Uniformity Correction)

OPTICAL SPECIFICATIONS

Lens Type Germanium

IR Window Germanium with Protective DLC Coating

Focal Length 19mm

F/# f/1.1

Transmission 88%

Eye Relief 27mm

Diopter -6/ +4

DISPLAY SPECIFICATIONS

Type Emagin OLED Monochrome Display

Resolution VGA 640x480

Output 10 bit Digital Monochrome

Contrast >10,000:1

Frame Rate 60HZ / 30HZ Selectable

SYSTEM SPECIFICATIONS

Magnification 640x480 19mm - 1.x optical 8x digital

Field of View 640x480 19mm - 22° optical 3° digital

Dimensions 5.95" L x 2.0" H x 2.95" W LE100/LE100C

Weight >454 grams

Start Up Time >4 Seconds

FEATURES SPECIFICATIONS

User Interface Thumb Stick Controller

Polarity MaxPOL White Hot / Black Hot

Edge Detect Edge Detection Mode

Electronic Zoom Up to 8X Zoom Depending on System

Laser Rail Built in Laser Interface Picatinny Rail

DFC - Digital Focus Enhances and Sharpens Imagery

Video Output RS-170 NTSC Analog Video Special Cable required

Contrast User Adjustable Contrast

RETICLE POSITION DIGITAL READ-OUTS
The PATROL thermal sight displays your current reticle position in the lower left corner of the screen. This information is useful for the advanced shooter that requires ballistic calculations in the field. It also helps with sighting the PATROL.

RANGEFINDER STADIAMETRIC RANGING
With the new integrated Stadiametric range finder in the PATROL system, you can quickly determine distances to your target. It is as easy as setting your range units, setting the target size, and adjusting the range marks to your target and the distance displayed in the Range Read-Out display.

ETR- ENHANCED TARGET RECOGNITION
One of our newest tactical features is the ETR mode that you will find extremely beneficial. Most thermal systems auto adjust the image settings across the entire screen that may lead to the image around the crosshair to be washed out. Now with ETR you can have a perfect image.

DFC- DIGITIAL FOCUS CONTROL
With the Digital Focus Control you can not only focus your picture to your optimum setting, but it also allows you to sharpen your overall picture. This will make a 320x240 look more like a 64x480 and provide a more detailed look at what DFC can do to the image.

PROTECTION IR WINDOW
Your Germanium objective front lens is the most costly item that will be exposed to the elements. We took the IR HUNTER a step further and designed a protective highly transmissive IR Window that can be replaced.

8X DIGITAL E-ZOOM
The PATROL thermal sight comes standard with a digital electronic zooming system. This allows you to achieve various magnifications quickly and with the advanced built in sighting system the reticle will maintain boresight and even increase its MOA accuracy.

MAXPOL POLARITY WHITE HOT/BLACK HOT
The PATROL comes with an easy to control polarity mode that lets you switch between 3 levels of White Hot and 3 levels of Black Hot. Having low, medium and high levels provides you with the perfect choice.

CONNECTOR
We chose the Fischer high end connectors as they are going to last and can operate in harsh environmental conditions. Many other scopes out there use sub-quality connectors that cost only a fraction of these. As they say, you get what you pay for.

US MADE – HONEST AND INTEGRITY
IRD is a U.S. company that is highly dependent upon U.S. sourced parts and components.
